Автоматична машина за ОРР етикети

Цена
€50
Обява от
Частно Лице
Тип Обява
предлага
Състояние
ново
Доставка
лично предаване

Машината е предназначена за прилагане на OPP етикети от ролка за PET бутилки, HDPE, стъкло.

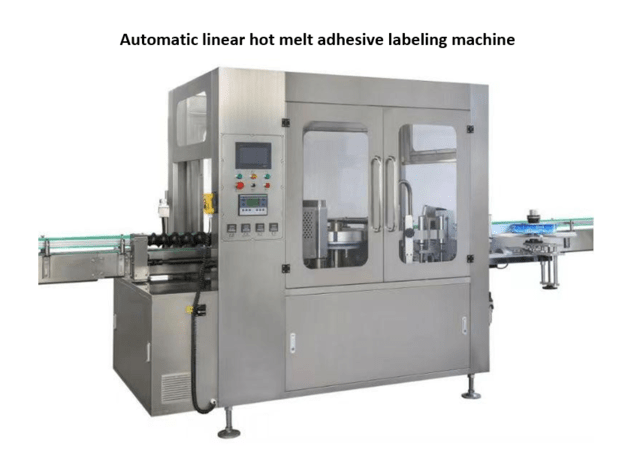

Name: Automatic linear hot melt adhesive labeling machine

Model: KP-06-4P

Main motor power: 1.5KW

Main motor brand: Taiwan Eastern Calendar

Controller: Schneider

Servo motor: Schneider 1.0KW

PLC: Schneider

Sensor: SICK Schneider Panasonic

LowVoltageApparatus: Schneider

Voltage: 380V±10%

Frequency: 50HZ

Whole machine power: 8KW

Labeling type: Single body label

Suitable for bottle type: Round bottle ∮40-100mm,height:80-350MM

Label size:Length 125-325mm, height20-190mm

Gluing method Roll coating (about 10mm at both ends of the label)

Usingtaggingmethods Volume label

Capacity: 4000-8000 bottles/hour (based on bottle sample)

Compressed air pressure: MIN5.0bar MAX8.0bar

Compressed air consumption: 0.2M³/min

Machine weight: 2000kg

Machine dimensions: L3150*W1200*H1800mm
